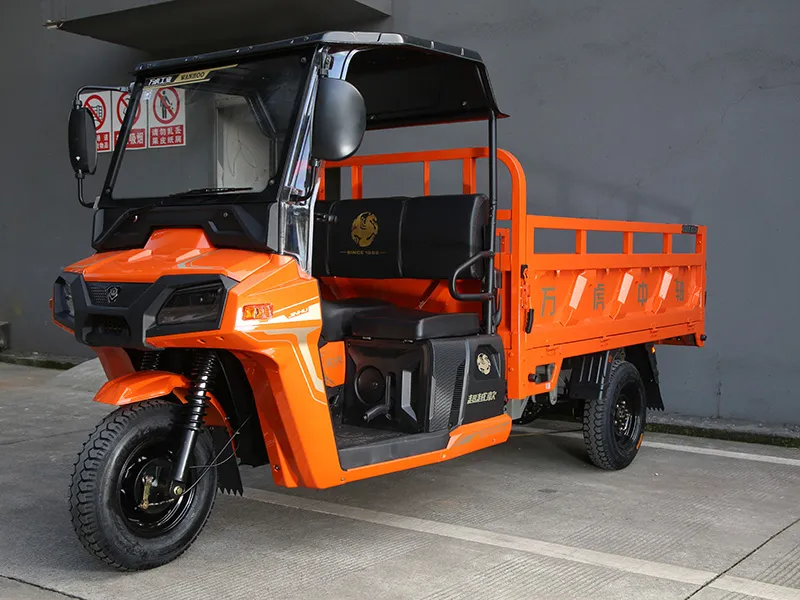

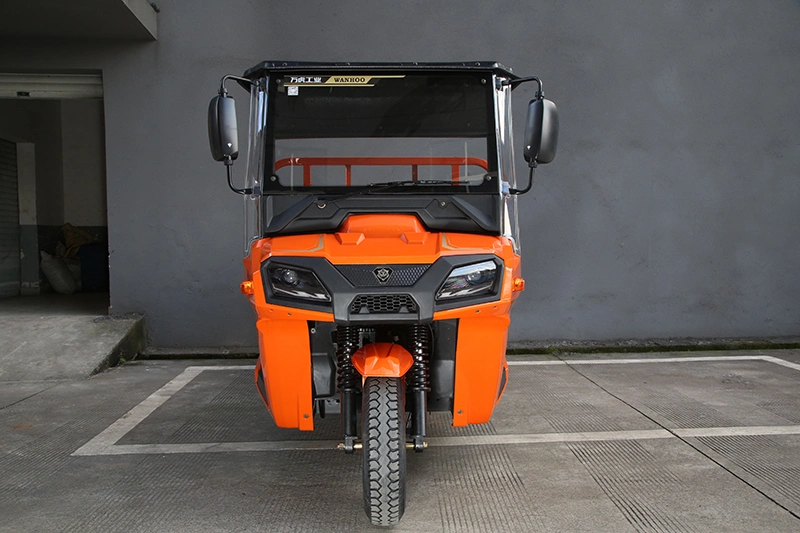

HH-1800B T15
HH-1800B T15
Products Categories
Get A Free Quote
| FOB UNIT PRICE (USD) | USD 1,100 |
|---|---|
| (Without Battery and Cabin) | |
| Battery | |
| 76.8V 100Ah Lithium Iron Phosphate | $730 |
| 76.8V 150Ah Lithium Iron Phosphate | $1,030 |
| Motor | |
| Power system | 4000W |
| Motor Max. output power | ≥9.0KW |
| Maximum current limit | 130A |
| Voltage platform | 76.8V |
| Motor Torque | 75N.m |
| Performance | |
| Max speed | 55KM/h |
| Max. climb gradability | ≥15 degrees |
| Milage under load | 76.8V100AH: 95KM 76.8V150AH: 137KM |
| Overall size | |
| L W H (mm) |
3400 1300 1800 |
| Cargo Box Size (mm) | 2000*1300 |
| Tire size | Front / Rear 5.00-12 |
| Rear Axle | Five-bolt Full-floating Rear Axle |
| Weight | 450KG (inc. 100Ah battery) |
| Braking system | F/R Drum Brake |
| Suspension | 50# External Spring Shock Absorber |
| Loading Capacity | |
| Rated Loading Capacity | 1500 Kg |
| Max Loading Capacity | 2000 Kg |
| Charging time | |
| 76.8V100Ah | 5h |
| 76.8V150Ah | 8h |
| OPTIONAL | |
| Spare Tire | $25 |
| Hydraulic Jack | $240 |
| Optional Color |  |
